The Xpectvision intraoral sensor uses silicon-based chips instead of the traditional material, cesium iodide (CsI), avoiding image blurring or performance deterioration.
Sensor Tested to 500,000+ Exposures
Guarantee longer life span

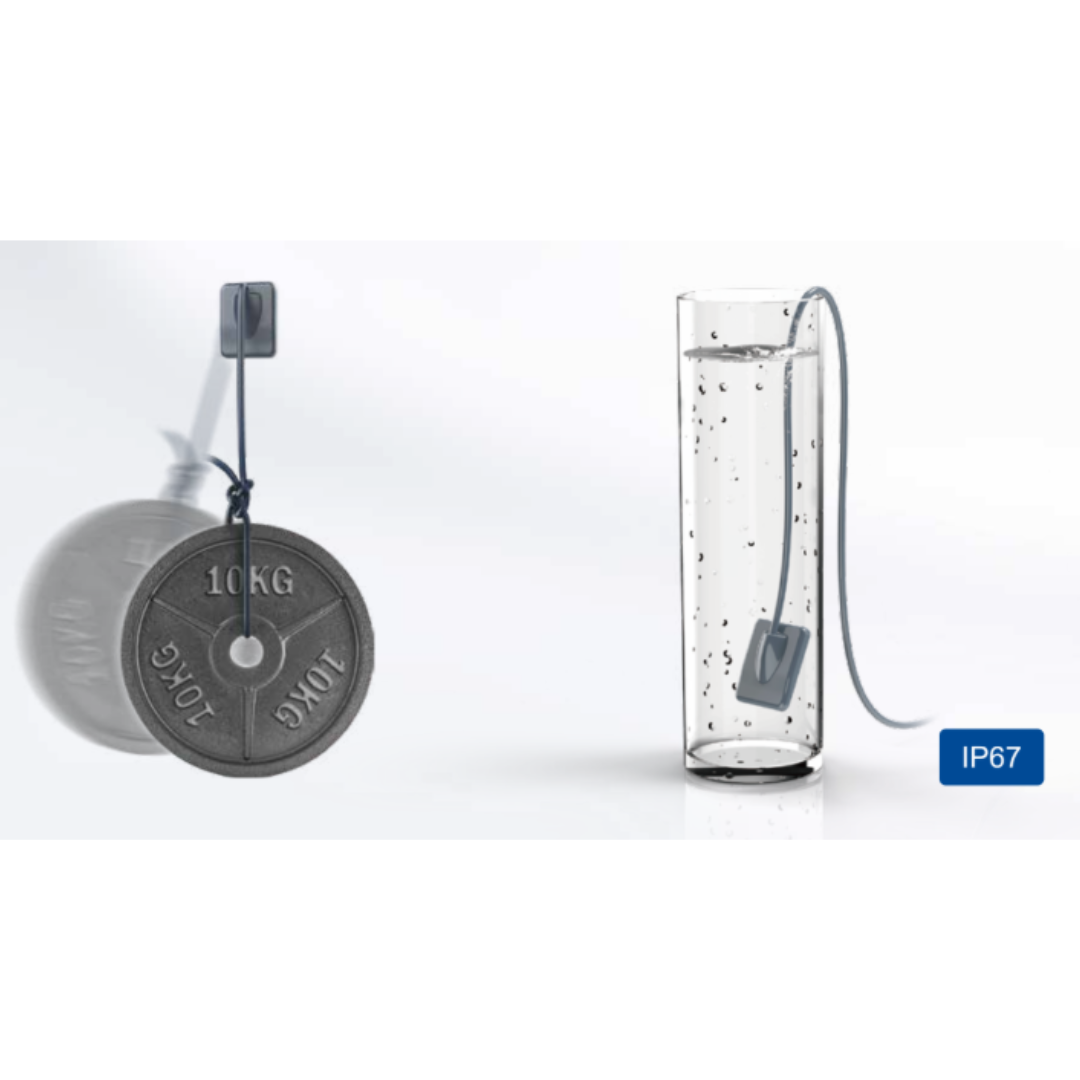

Cable Strength and Durability
100,000+ cable bending tests and pull strength to withstand forces of up to 10kg.
Water Resistance Tested to IEC IP67
The impact-resistant sensor case is sealed to withstand submersion in 3ft of water for 30 minutes.

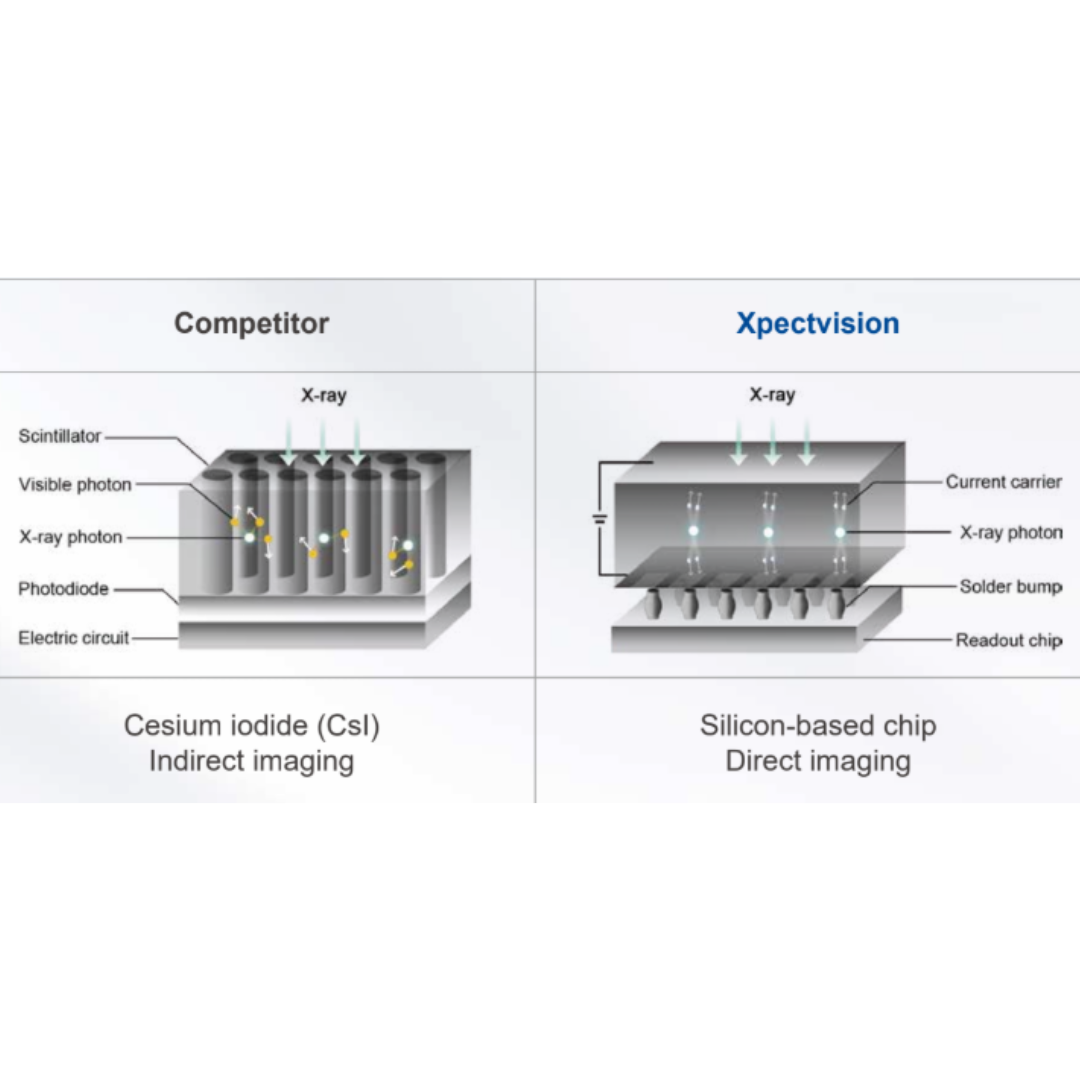

Of its high technical requirements and costs, photon-counting is an emerging technology in clinical CT. Xpectvision is the world’s first to apply the latest photon-counting technology to dentistry, enabling direct imaging, avoiding the interference of light scattering from conventional indirect imaging, and ensuring image acquisition stability.

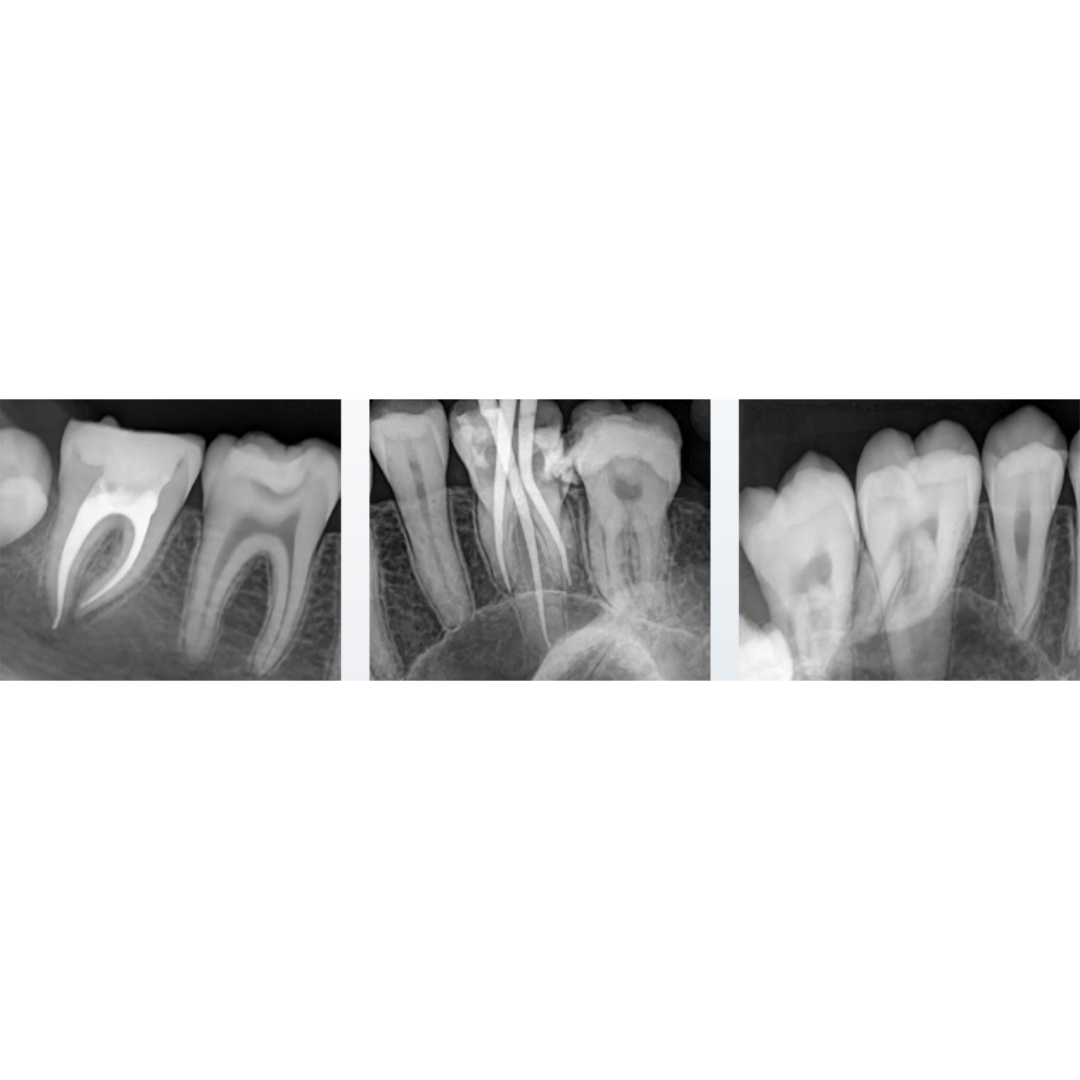

The broad dynamic range eliminates time-consuming fine-tuning of exposure to produce a clinical image.
Adjust contrast and brightness to meet different clinical requirements.
One of the Thinnest X-Ray Sensors in the Market

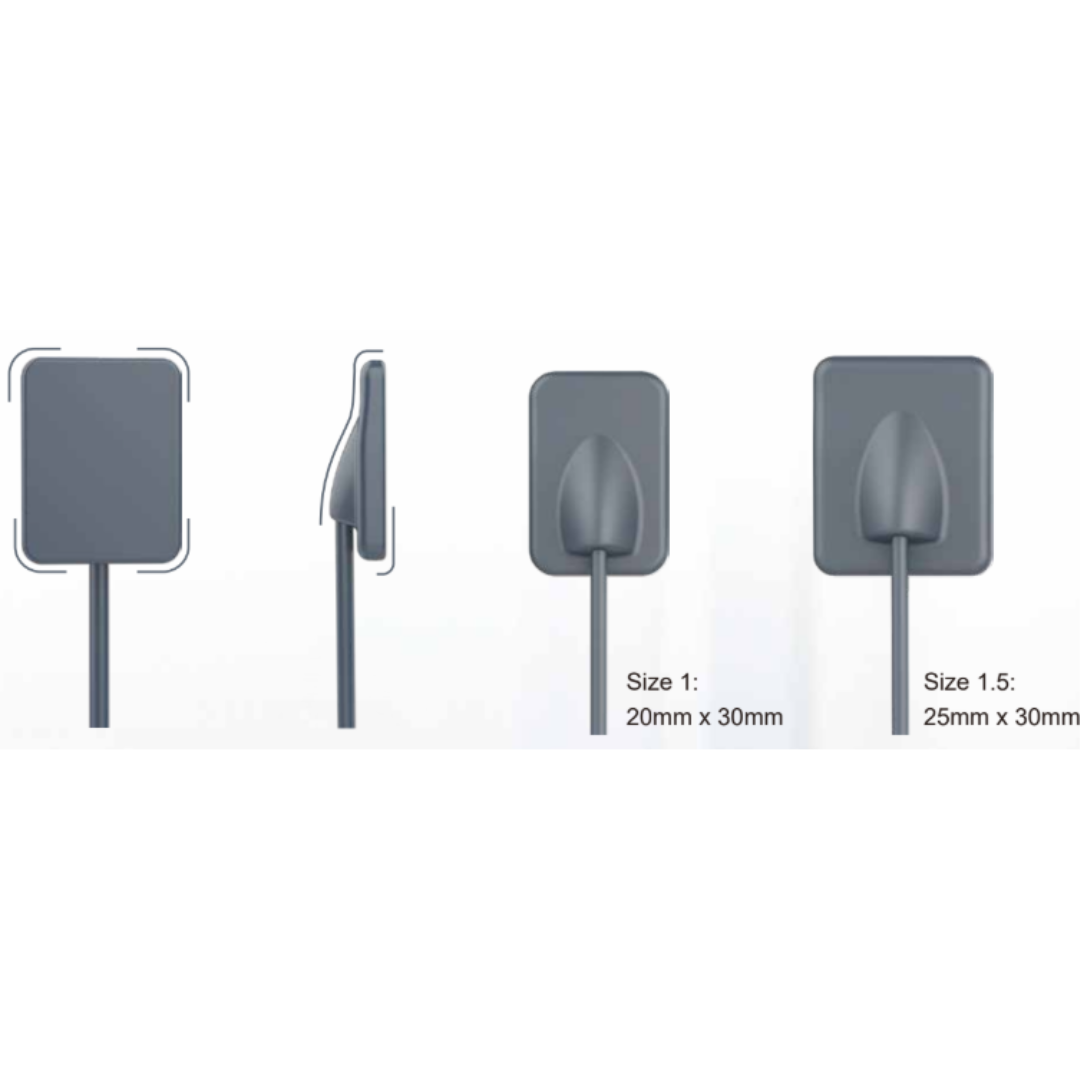

The sensor comes in 2 sizes for both adults and children, better meeting different clinical requirements.
To better improve the diagnosis experience of patients, the Xpectvision sensor has a more compact design while guaranteeing an adequate sensor area.
Sensor positioners help with quick positioning, significantly reducing patients’ discomfort and improving diagnostic efficiency.
Warranty:
Xpectvision offers a 2-year warranty for intraoral sensors. If a device malfunction occurs with typical use, Xpectvision will provide replacements for free.
Software upgrades and customer support is included with each intraoral sensor at no additional charge.
Technical specification:
| Specifications |
Size 1 |
Size 1.5 |
| Detector Technology |
Photon-counting direct imaging |
Photon-counting direct imaging |
| Grayscale |
65,536 gray level(16 bit) |
65,536 gray level(16 bit) |
| Imaging Area |
20*30 mm2 |
25*30 mm2 |
| Mechanical Size |
26.2*38.5 mm2 |
30*40.5 mm2 |
| Thickness |
5mm |
5mm |
| Waterproof |
IP67 |
IP67 |
| Image Format |
BMP/DIR/DCM/JPEG/PNG/TIFF |
BMP/DIR/DCM/JPEG/PNG/TIFF |
